Schneider BMXXBE1000

Schneider BMXXBE1000 Rack extension module

Schneider BMXXBE1000
Rack extension module, used to connect two racks, installed on the far right side of the rack, not occupying a slot
Product description: Schneider BMXXBE1000 Rack extension module, used to connect two racks, installed on the far right side of the rack, not occupying a slot
Notes:The picture on the left is for reference only, please refer to the actual product picture
mailto: 190807896@qq.com
INQUIRY

Note: The product description and picture display of model Schneider BMXXBE1000 Rack extension module is for reference only, and the specific product description shall prevail.
Product packaging reference:

Schneider BMXXBE1000 Rack extension module, used to connect two racks, installed on the far right side of the rack, not occupying a slot

main information
Product Series
Modicon M340 automation platform
Accessories / independent installation parts category
Extension accessories
Types of accessories/independent installation parts
Backplane
Accessories/independent installation parts instructions
Backplane expansion module
The scope of products
BMXXBP0600
BMXXBP0400
BMXXBP0800
BMXXBP1200
Accessories / independent installation parts
For multi-rack configuration
Additional information
Electrical connections
2-hole terminal SUB-D 9
Local signal indication
1 LED green for operating status (RUN) bus
1 LED red for collision error (COL) rack
4 LED indicators Green for backplane address status
Current consumption
160 mA at 24 V DC
22 mA at 3.3 V DC
Module classification
standard
surroundings
IP protection level
IP20
Operating temperature
0…60 °C
Relative humidity
10…95% without condensation
Comply with the directive
2014/35/EU-low voltage directive
2014/30/EU-electromagnetic compatibility
2012/19/EU-WEEE Directive
certified product
CE
UL
CSA
RCM
EAC
Merchant ship
Standard
EN 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5
EN/IEC 61850-3
Environmental characteristics
Hazardous area Class 1 Class 2
Protection treatment
TC

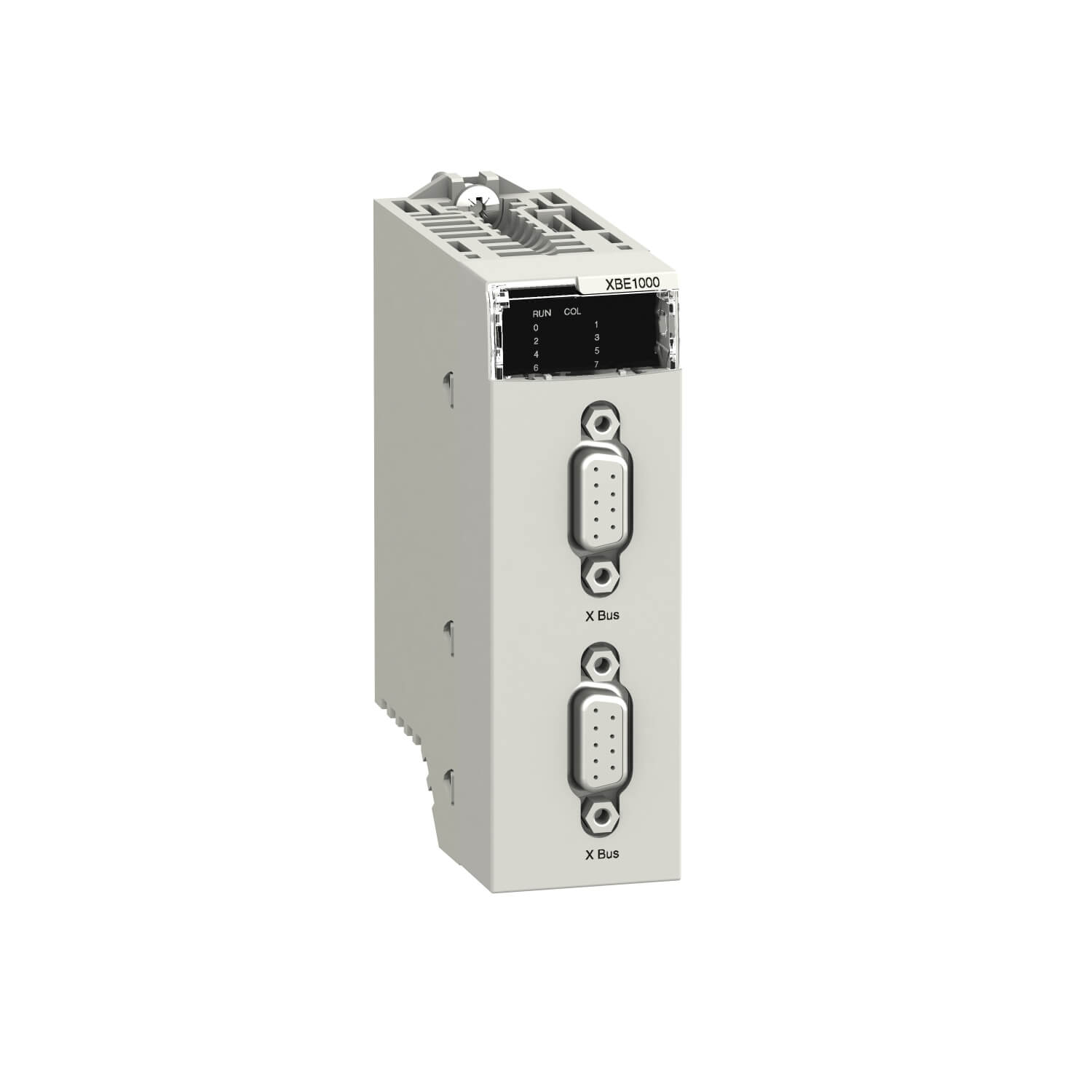

Product physical map reference:
Schneider BMXXBE1000 Rack extension moduleProduct physical map reference

Quanzhou Fengteng Automation sells original and brand-new Schneider BMXXBE1000 Rack extension module at a special price. If you want to know the technical parameters, installation manual, user manual (user manual) or information, price, and goods of Schneider BMXXBE1000 Rack extension module Please contact us for details.
