Schneider BMENUA0100H OPC UA module for M580 harsh environments

Schneider BMENUA0100H OPC UA module for M580 harsh environments

main information
Product Series
Modicon M580
product type
Communication module
Scope of application
Ethernet + X-bus rack
Additional information
Integrated connection type
1 Ethernet, connector type: RJ45, transmission rate: 1 Gbit/s, transmission mode: double shielded twisted pair
1 Ethernet, transmission rate: 100 Mbit/s
Web server
For configuration
Transmission support medium
Ethernet backplane
Communication service
OPC UA server
Modbus TCP messaging
SNMP network management
NTP time synchronization
Embedded router
Ethernet port
10/100/1000 BASE-TX
Power supply
Internal power supply through the rack
Protection treatment
Three anti-coating
Logo
CE
CSA
Module classification
standard
Current consumption
<= 140 mA at 24 V DC
Length
86.05 mm
Width
32 mm
Height
131 mm
Product Weight
0.4 kg
surroundings
Operating temperature
-25…70 °C
Relative humidity
5…95% at 55 °C
IP protection level
IP20
Comply with the directive
2014/35/EU-low voltage directive
2014/30/EU-electromagnetic compatibility
2014/34/EU-ATEX directive
certified product
CE
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22
Standard
EN/IEC 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
EN/IEC 60079-0
Environmental characteristics
Gas resistant class Gx conforming to ISA S71.04
Gas resistant class 3C4 conforming to IEC 60721-3-3
Dust resistant class 3S4 conforming to IEC 60721-3-3
Sand resistant class 3S4 conforming to IEC 60721-3-3
Salt resistant level 2 conforming to IEC 68252
Mold growth resistant class 3B2 conforming to IEC 60721-3-3
Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Hazardous location class I division 2
Local signal indication
1 LED (green) for processor running (RUN)
1 LED (red) for processor or system fault (ERR)
1 LED (green/red) for ETH MS (Ethernet port configuration status)
1 LED (green/red) for Eth NS (Ethernet network status)
1 LED (green/red) status (STS):
1 LED (yellow) data exchange bus:

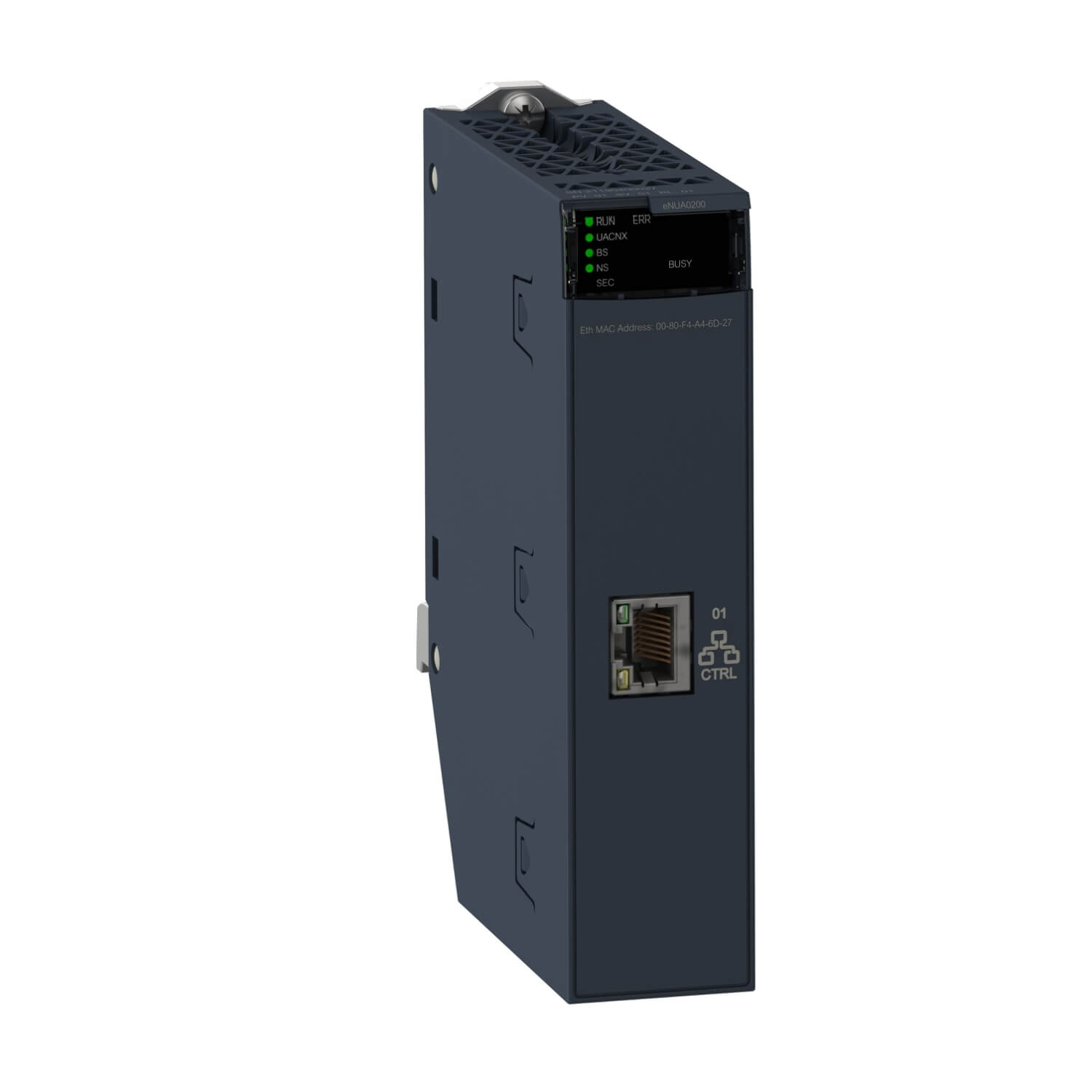

Product physical map reference:
