Schneider 140ACO02000

Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar current

Schneider 140ACO02000
Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar current
Product description: Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar current

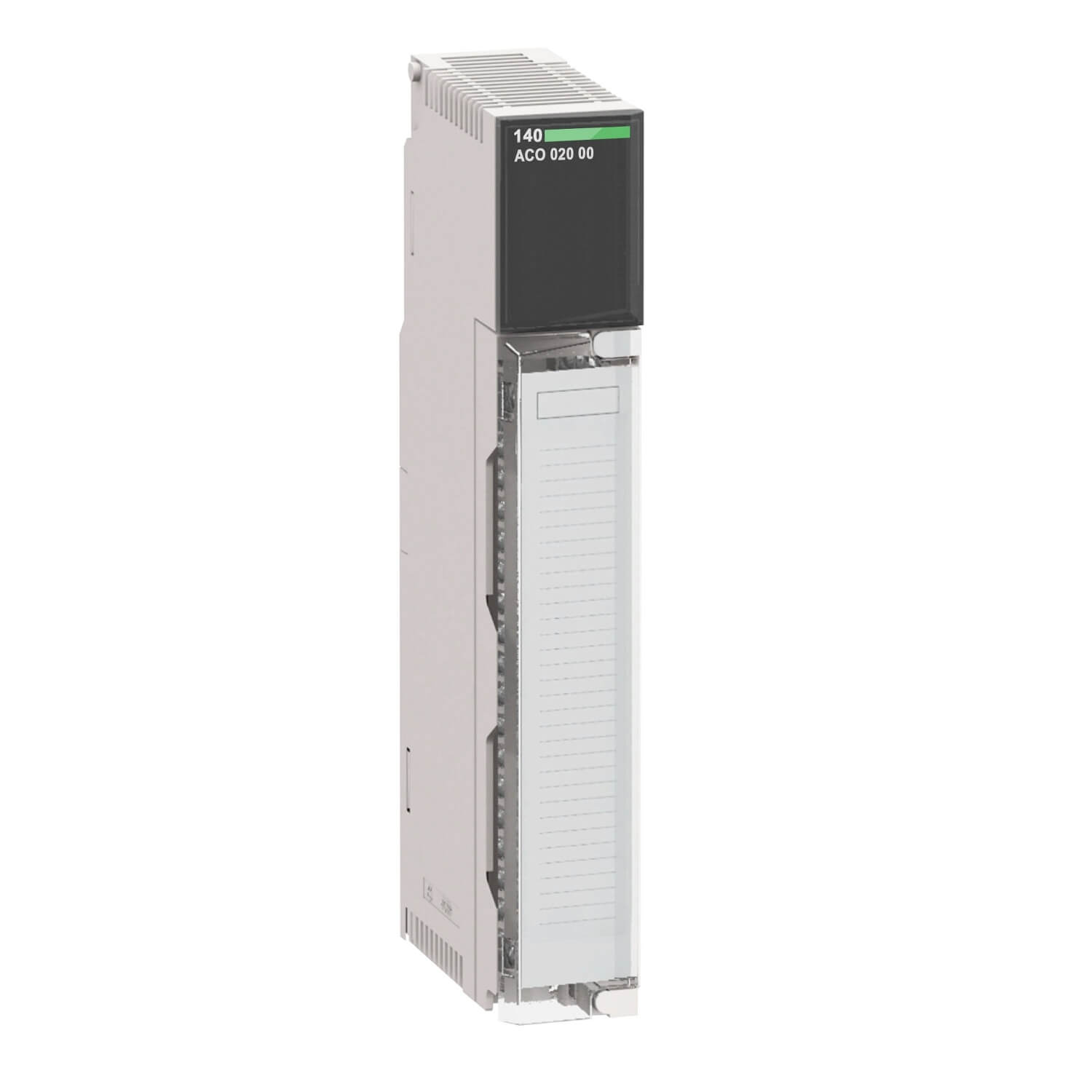

Notes:The picture on the left is for reference only, please refer to the actual product picture
mailto: 190807896@qq.com
INQUIRY

Note: The product description and picture display of model Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar current is for reference only, and the specific product description shall prevail.
Product packaging reference:

main information
Product Series
Modicon Quantum automation platform
product type
Analog output module
Additional information
Number of analog output
4
Address requirements
4 output word
Loop voltage
12…30 V DC
maximum voltage drop
<30 V 20 mA
Analog output range
4...20 mA 0...4096 counts, 12-bit bipolar current
Absolute accuracy error
+/- 0.20% of full scale at 25 °C
Linearity
+/- 1 LSB
Temperature deviation accuracy
+/- 0.004% of full scale/°C
+/- 0.007% of full scale/°C max
Isolation between channels
500 V 47...63 Hz AC
750 V for 1 minute DC
Update time
3 ms
Set time
900 µs to +/- 0.1% of final value
Fault type
Open circuit 4...20 mA
Demand bus current
480 mA
maximum power dissipation in W
5.3 W
External power requirements
12...30 V
Logo
CE
Local signal indication
1 LED (green) Bus communication in progress (active):
1 LED (red) External fault:
4 LED indicators (green) channel open:
4 LED indicators (red) Channel failure:
Module classification
standard
Product Weight
0.3 kg
surroundings
certified product
FM, Category 1, Category 2
CUL
Standards compliant
CSA C22.2 No 142
UL 508
Anti-electromagnetic domain
10 V/m 80…2000 MHz conforming to IEC 801-3
Operating temperature
0…60 °C
Storage temperature
-40…85 °C
Relative humidity
95% non-condensing
Working altitude
<= 5000 m

Product physical map reference:
Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar currentProduct physical map reference

Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar currentProduct physical map reference

Quanzhou Fengteng Automation sells original and brand-new Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar current at a special price. If you want to know the technical parameters, installation manual, user manual (user manual) or information, price, and goods of Schneider 140ACO02000 Analog output module Modicon Quantum-4 O-4..20 mA, 12 bits bipolar current Please contact us for details.
